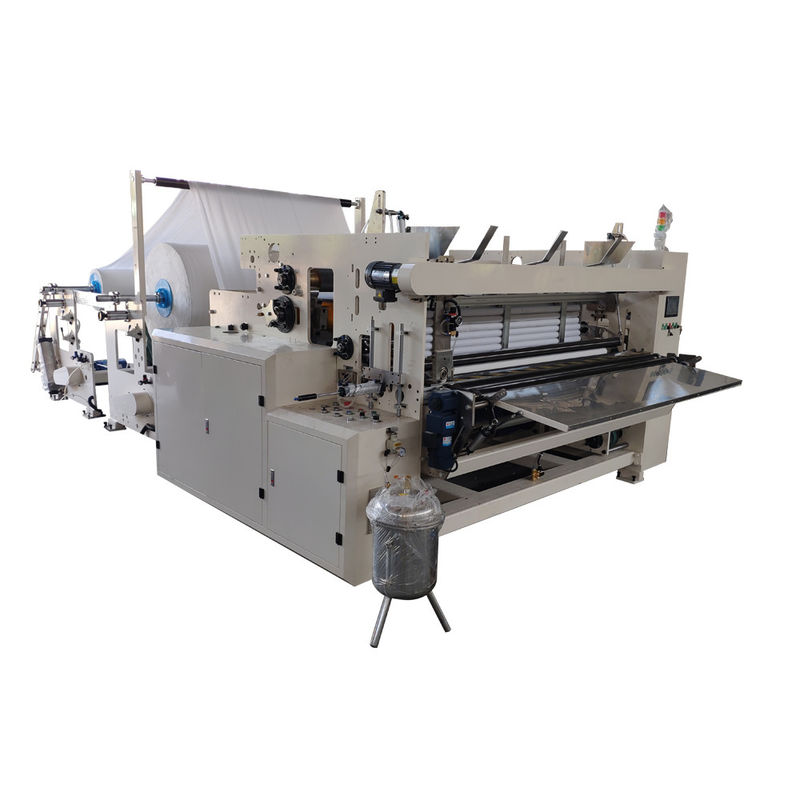

Good quality toilet paper/maxi roll/kitchen towel making machine with embossing
XY-TQ-B Good quality toilet paper/maxi roll/kitchen towel making machine with embossing
Lima-Approved Toilet Paper Converting Systems with Local Support
Compact TP Production Lines - Ideal for Peruvian SMEs
Outline
This advanced rewinding system processes jumbo rolls into finished toilet paper logs or maxi rolls. The machine features:
- Core feeding unit for seamless production
- Dual embossing options (full or edge patterns)
- Complete processing including perforation, edge trimming, and tail gluing
- PLC-controlled operation with touchscreen interface
- 230m/min maximum speed for high-volume output
The automated system integrates with cutting and packaging equipment to deliver retail-ready products. Custom configurations available to meet specific production requirements.
toilet paper machine,toilet paper making machine,maxi roll machine,kitchen towel machine,kitchen towel making machine
Functions and Features --- Wall Type Automatic Rewinding Machine
1.This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
Product Parameters
Technical data:
|
Machine Model
|
XY-TQ-B
|
|
Jumbo Roll Max Width
|
2800mm (Other size can be specified)
|
|
Jumbo Roll Diameter
|
Φ1200mm(Other size can be specified)
|
|
Jumbo Roll Inner Diameter
|
3inches(76.2mm) (Other size can be specified)
|
|
Perforation Distance
|
4 anvil Blades(115mm)(Other size can be specified)
|
|
Finished Product Diameter
|
Φ90~φ280mm
|
|
Finished Product Core Diameter
|
φ38~φ76mm
|
|
Production Speed
|
200~230m/min
|
|
Program Controller
|
PLC( INVT )
|
|
Unwind Stands
|
2 Stands(Need to be specified)
|
|
Pneumatic System
|
3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user)
|
|
Main Power
|
14KW 380V 50HZ
|
|
Dimension
|
7000*4000*1900(L*W*H)
|
|
Weight
|
About 7T
|
|
Edge-Line Embossing
|
Steel to steel (Pneumatic Control)
|
|
Full Embossment
|
Steel to rubber.
|
Steel To Rubber Embossing Device
Finished Products
Q: Are you trading company or manufacturer
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to
quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
After Sales Service
(1), All our machine will have Two years guarantee
(2), Within two year after receiving our machines, Under right operation and non-artificial reasons, If there are any damaged parts or accessories, We will replace them by DHL or Fedex immediately FREE OF CHARGE.
(3), After two year warranty, Spare parts and damaged parts will be charged at cost price. If there is something wrong with the machine, We are responsible to solve this problem soonest, and help customers to restore production as soon as possible.
(4), After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4) Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
